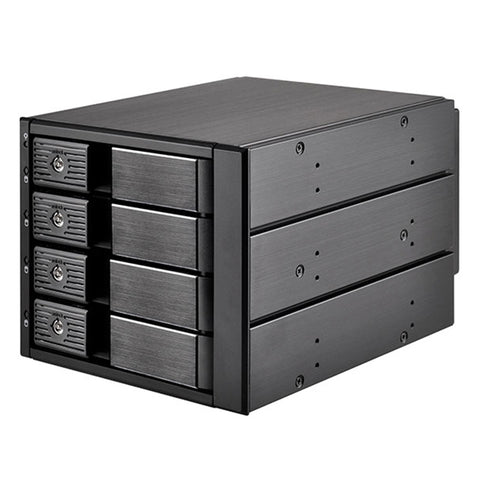

FS304
Fits four 3.5" SAS 12Gb** / SATA 6Gb drives in three 5.25" device bay
Adjustable drive status LED and fan control system
Trayless & screwless design
Individual metal key lock for each drive for extra security
All aluminum body with beautiful hairline brushed finish
Independent drive status LED
Built-in cooling fan for excellent heat dissipation
Fully supports Hot-Swap function
SPECIFICATIONS:
Colour |
Black |
Material |
Aluminum and front bezel with plastic clip button |
Transfer rate |
Up to 12 Gbit/s** or 6 Gbit/s (depend on drive speed) |
Application |
5.25 drive bay x 3 |
Cooling system |
80mm fan x 1, 3000rpm |
Power connector |
SATA 15-Pin x 2 |
Drive support |
4 x 3.5 SAS*/SATA HDD or SSD |
Host nterface |
7-Pin SATA connector x 4 or SAS* primary channel connection |
Drive security |
Triangle metal key lock design |
Number of key |
2 |
LED indicator |
Power ON : Blue Accessing : Purple blinking |
Switch button |
Fan speed:High/Low HDD LED:ON/OFF |
Dimension |
146mm (W) x 125mm (H) x 198mm (D) |
Net weight |
1.45kg |
Notes |
*Your system must have SAS controller if you want to use SAS HDD *Hard drive capacity and RAID support is dependent on SAS or SATA controller used **12Gbit/s Mini-SAS HD control card and cable required for 12Gb/s performance. (e.g. SilverStone ECS05 & CPS05) |
