SPECIFICATIONS:
|
Model (safety certification) |

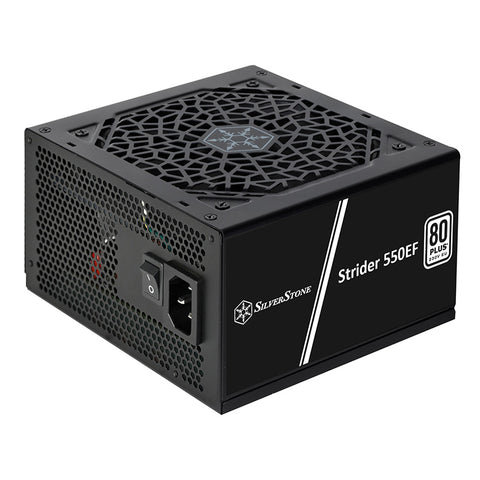

SST-AX0550FCWH-A |
|
Color |
Black (lead-free paint) |
|
Max. DC Output |
550W |
|
Power density |
305W per liter |
|
Combined +3.3V & +5V |
100W |
|
Combined +12V |
550W |
|
Input Voltage |
180 ~ 264 Vrms |
|
Input Frequency Range |
47Hz ~ 63Hz |
|
PFC |
Active PFC (PF>0.9 at full load) |
|
Efficiency |
82% ~ 85% (at 20% ~ 100% loading) |
|
MTBF |
100,000 hours |
|
Operating temperature |
0 °C ~ 40 °C |
|
Protection |
Over Voltage Protection Under Voltage Protection Over Power Protection Short Circuit Protection |
|
Connectors |
1 x 24 / 20-Pin motherboard connector 1 x 8 / 4-Pin EPS / ATX 12V connectors 2 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 2 x 4-Pin Peripheral connectors |
|
Cooling System |
Silent 120mm fan |
|
Noise Level |
18 dBA minimum |
|
Certification |
80 PLUS |
|
Form factor |
ATX (PS2) |
|
Dimension |
150mm (W) — 86mm (H) — 140mm (D) 5.91" (W) x 3.39" (H) x 5.5" (D) |
|
Weight |
1.38 kg |
