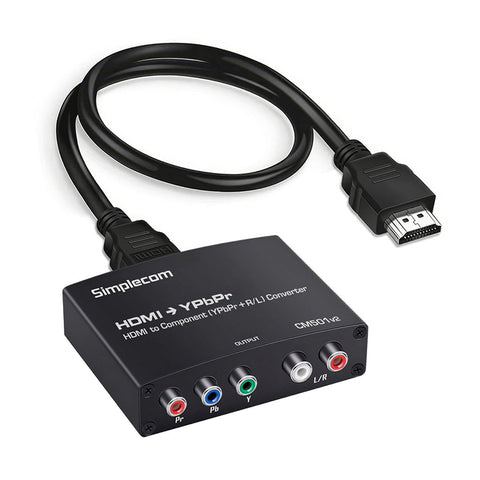

Simplecom CM501v2 HDMI to Component Video YPbPrb
This HDMI to Component converter is designed to convert digital HDMI signals into analog component video (YPbPr) with R/L stereo audio output, making it ideal for connecting modern HDMI source devices to legacy YPbPr displays or projectors. It supports video resolutions up to Full HD 1080p and delivers clear, stable image quality.
The converter is USB powered, allowing convenient operation using a USB wall adapter or a nearby USB port. Housed in a durable metal enclosure, it offers excellent heat dissipation for reliable, long-term operation. Please note this unidirectional converter supports HDMI to Component conversion only and cannot be used in reverse.
Converts digital HDMI to analog component video (YPbPr + R/L stereo audio)
Supports video resolutions up to Full HD 1080p
Supports up to 165 MHz / 1.65 Gbps per channel bandwidth (4.95 Gbps total)
Supports uncompressed 2-channel audio such as LPCM
USB powered, can be powered via a USB wall adapter or a nearby USB port
Metal case for durability and excellent heat dissipation
Ideal for connecting HDMI source devices to YPbPr displays or projectors
Unidirectional converter, HDMI to component only (not reversible)
SPECIFICATIONS:
Input |
HDMI v1.4 |
Output |
Component (YPbPr) + R/L stereo audio |
HDCP Support |
HDCP 1.2 |
HDMI Input Bandwidth |
1.65 Gbps / 165 MHz per channel |
Supported Video Resolutions |
480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
Vertical Frequency Range |
50/60 Hz |
Operating Temperature |
0 °C to 70 °C |
Operating Humidity |
10% to 85% RH |
Storage Temperature |
10 °C to +80 °C |
Storage Humidity |
5% to 90% RH |
Case Material |
Metal |
Power Input |
USB 5V / 1A |
Maximum Power Consumption |
5W |
Dimensions |
8.8 Ã 6.8 Ã 2.5cm |
Weight |
68g |
Package Contents |
1x HDMI to Component Converter 1x HDMI Cable 0.5M 1x USB Power cable 1x USB Wall Charger |
