- Compact fluid head, lighter, smaller, and more convenient.

- Fixed damping for a smooth operation experience.

- It can be tilted +90°/-55° and swiveled 360°, allowing multi-angle shooting.

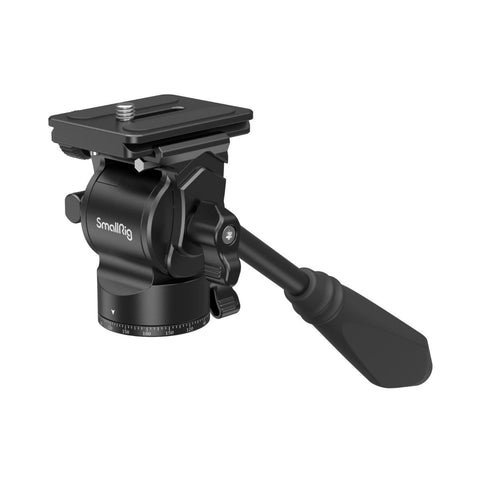

SmallRig Video Head CH10 3259B is a compact and portable video head designed for shooting video. Unlike other traditional video heads, it is only 70mm in height and features a 37mm-diameter baseplate, compact and easy to carry around. Fixed damping allows a smooth operation experience. It can be tilted +90°/-55° and swiveled 360° for multi-angle shooting. It comes with a removable anti-slip operation lever and can be used for either the left handle or right handle, and with an Arca-type quick-release plate for a quick switch between handheld shot and tripod shot. The head also includes a built-in screwdriver.

IMPORTANT
- Avoid using it in a sandy and dusty environment, otherwise, there is a risk of damage.
- Load capacity: 3kg.
- 37mm head base.
- The head base has a 3/8"-16 threaded hole with a 1/4"-20 threaded adapter.

Key Features
Product Dimensions (excluding lever): 70 x 75x 50mm
Package Dimensions: 240.0 x 80.0 x 76.0mm
Product Weight: 286.0 ± 5.0g
Package Weight: 375.0 ± 5.0g
Load Capacity: 3kg
Tilt: +90°/-55°
Tilt Damping: Non-adjustable
Independent Tilt Lock: Yes
Panorama: 360°
Independent Panning Lock: Yes
Base Diameter: 37mm
Lever Length: 200mm
Quick Release Plate Type: Arca-Swiss
Top Attachment: 1/4"-20 Screw
Material(s): Aluminum Alloy, POM, Stainless Steel, Silicone

Compatibility
Arca-Swiss Quick Release Plate

What’s in the box?
1x Video Head
1x User Manual
