SPECIFICATIONS:
CONNECTOR(S) |
|
Connector Type(s) |
3 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
Environmental |
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F) |
Storage Temperature |
-10 °C to 70 °C (14 °F to 158 °F) |
Humidity |
0%~85% RH (Non-condensing) |
HARDWARE |
|
USB-C Device Port(s) |
No |
USB-C Host Connection |
Yes |
Fast-Charge Port(s) |
No |
Ports |
3 |
Interface |
USB 3.2 Gen 1 (5Gbps) RJ45 (Gigabit Ethernet) |
Bus Type |
USB 3.2 Gen 1 (5Gbps) |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID |
Genesys Logic - GL3523 ASIX - AX88179 |
INDICATORS |
|
LED Indicators |
1 - Link 1 - Activity |
PACKAGING INFORMATION |
|
Package Height |
53 mm [2.1 in] |
Package Length |
22 cm [8.7 in] |
Shipping (Package) Weight |
340 g [12.0 oz] |
Package Width |
15.2 cm [6.0 in] |
PERFORMANCE |
|
Maximum Data Transfer Rate |
5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
Type and Rate |
USB 3.0 - 5 Gbit/s |
Flow Control |
Full duplex flow control |
Compatible Networks |
10/100/1000 Mbps |
Auto MDIX |
Yes |
Full Duplex Support |
Yes |
Jumbo Frame Support |
4K max. |
PHYSICAL CHARACTERISTICS |
|
Form Factor |
Compact |
Weight of Product |
50 g [1.8 oz] |
Colour |
Black |
Material |
Plastic |
Cable Length |
300 mm [11.8 in] |
Product Length |
87 mm [3.4 in] |
Product Width |
45 mm [1.8 in] |
Product Height |
1.4 cm [0.6 in] |
POWER |
|
Power Source |
AC Adapter Included |
Input Voltage |
100 - 240 AC |
Input Current |
0.5 A |
Output Voltage |
5 DC |
Output Current |
2 A |
Centre Tip Polarity |
Positive |
Plug Type |
H |
Power Consumption (In Watts) |
10 |
SOFTWARE |
|
OS Compatibility |
Windows ® XP, Vista, 7, 8, 8.1, 10, 11 Windows Server ® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.3 and up Chrome OS ¢ Linux 2.6.x to 4.11.x LTS versions only |
SPECIAL NOTES / REQUIREMENTS |
|
System and Cable Requirements |
Available USB Type-C port - USB 3.0 (5Gbps) |
Note |
The hub does not support DisplayPort Alt Mode, or USB Power Delivery |
WHAT'S IN THE BOX |
|
Included in Package |

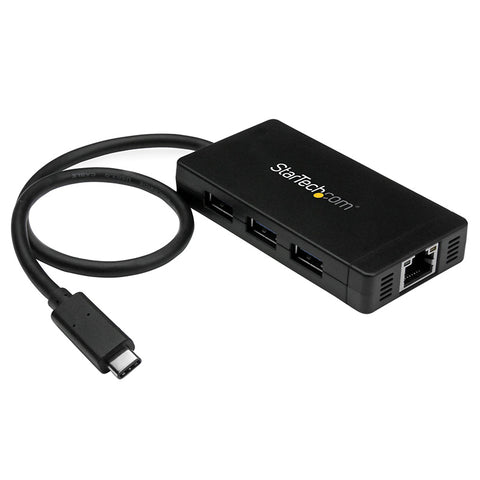

1 - 3-port USB 3.0 hub plus GbE 1 - universal power adapter (NA/JP, EU, UK, ANZ) |
