Series

AH Series

Model

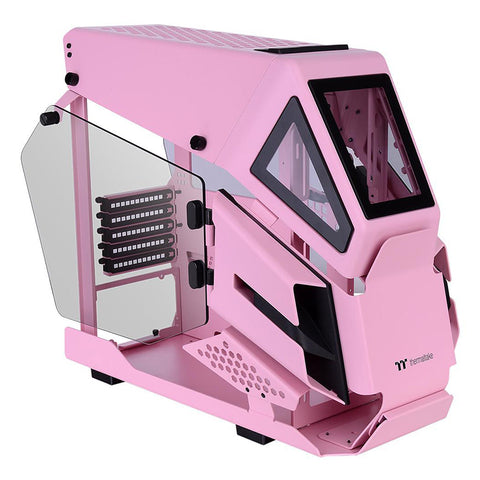

AH T200 Pink

Case type

Micro Case

Dimension (H X W X D)

444.2 x 282 x 551.5 mm

(17.5 x 11.1 x 21.7 inch)

Net weight

10.8 kg / 23.8 lb

Panel

Tempered Glass x 2

Colour

Pink

Material

SPCC

Drive bays

-Accessible

-Hidden

2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)

-

Expansion slots

5

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O port

USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

Top:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

Radiator support

Front:

1 x 240mm or 1 x 120mm

1 x 280mm or 1 x 140mm

Clearance

CPU cooler max height: 150mm

VGA max length: 320mm

PSU max length: 180mm

3.5” HDD thickness limitation: 22mm
