Series

The Tower

Model

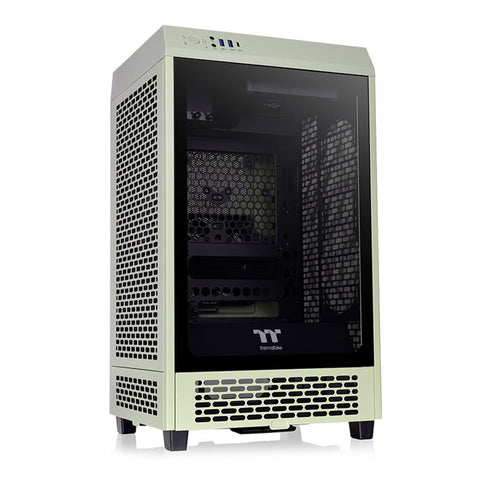

The Tower 200

Case type

Mini Tower

Dimension (h x w x d)

537 x 300 x 280 mm

(21.14 x 11.8 x 11 inch)

Net weight

7.7 kg / 16.98 lbs.

Panel

3mm Tempered Glass x 1

Colour

Matcha Green

Material

SPCC

Cooling system

Top(exhaust):

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Rear(exhaust):

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Drive bays

2 x 3.5”, 2 x 2.5”

or 4 x 2.5”

Expansion slots

3

Motherboards

6.7" x 6.7" (Mini ITX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Top:

1 x 120mm

1 x 140mm

Right Side:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Rear: 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm

1 x 140mm

Radiator support

Top:

1 x 120mm

1 x 140mm

Right Side(AIO):

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Clearance

CPU cooler height limitation: 200mm

VGA length limitation:

280mm(With power cover)

380mm(Without power cover)

PSU length limitation: 220mm
