Series

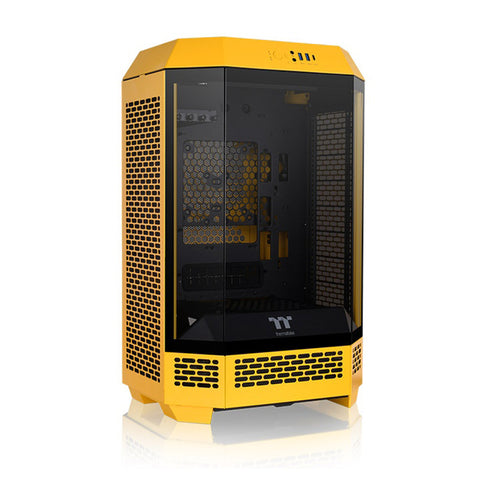

The Tower

Case type

Micro Tower

Dimension (H X W X D)

551 x 342 x 281 mm

(22.5 x 14 x 11.5 inch)

Net weight

8.3 kg / 18.3 lbs.

Panel

3mm Tempered Glass x 3

Colour

Bumblebee

Material

SPCC

Cooling system

Top(exhaust):

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2

Expansion slots

4

Motherboards

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right Side:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm

1 x 140mm

Radiator support

Right Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Clearance

CPU cooler height limitation:

210mm

VGA length limitation:

280mm(With power cover)

400mm(Without power cover)

PSU length limitation:

220mm
