Model

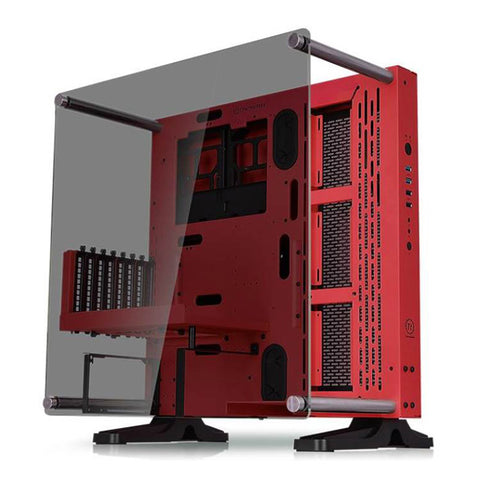

Core P3 TG (Red)

Series

Core

Case Type

Mid Tower

Dimensions

512 x 333 x 470 mm

(20.2 x 13.1 x 18.5 inch)

Weight

11.3 kg / 24.91 lb

Side Panel

5mm Tempered Glass x 1

Color

Red & Black

Material

SPCC

Drive Bays

2 x 3.5" or 3 x 2.5" (Outside the chassis)

2 x 3.5’’ or 2.5’’ (Inside the chassis)

Expansion Slots

8

Motherboard

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Left Side:

1 x 360mm or 1 x 240mm or 1 x 120mm

1 x 420mm or 1 x 280mm or 1x 140mm

Radiator Support

Left Side:

1 x 360mm

1 x 420mm

Clearance

CPU cooler height limitation:

180mm

VGA length limitation:

280mm (With Reservoir & Radiator)

450mm (Without Reservoir & Radiator)

PSU length limitation:

200mm
