Series

Divider

Model

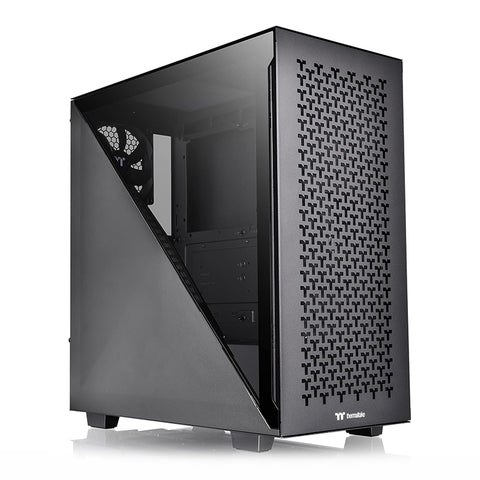

Divider 300 TG Air

Case type

Mid Tower

Dimension (H X W X D)

475 x 220 x 461 mm

(18.7 x 8.66 x 18.1 inch)

Net weight

8.18 kg / 18.03 lbs.

Panel

Tempered Glass x 1

Color

Black

Material

SPCC

Cooling system

Front(intake):

120 x 120 x 25 mm Standard fan (1000rpm, 16 dBA) x 1

Rear(exhaust):

120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1

Drive bays

-accessible

-hidden

2 x 3.5”, 5 x 2.5”

or 7 x 2.5”

Expansion slots

7 (Rotatable Patented Design)

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/o port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

Psu

Standard PS2 PSU (optional)

Fan support

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Top:

1 x 120mm, 1 x 140mm

Right (M/B Side):

2 x 120mm, 1 x 120mm

Rear:

1 x 120mm

Radiator support

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right (M/B Side):

1 x 240mm (vertical-installed GPU recommended),

1 x 120mm

Rear:

1 x 120mm

Clearance

CPU cooler height limitation:

145mm

VGA length limitation:

360mm(With radiator)

390mm(Without radiator)

PSU length limitation:

180mm (With HDD Cage)

220mm(Without HDD Cage)
