P/N

CA-1T4-00M1WN-02

SERIES

Divider

MODEL

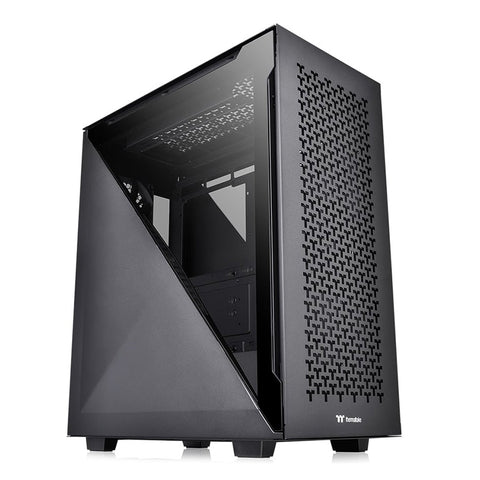

Divider 500 TG Air

CASE TYPE

Mid Tower

DIMENSION (H X W X D)

530 x 230 x 466 mm
(20.9 x 9.1 x 18.3 inch)

NET WEIGHT

10.29 kg / 22.69 lbs.

SIDE PANEL

3mm Tempered Glass x 2

COLOR

Black

MATERIAL

SPCC

COOLING SYSTEM

Front(intake):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1

DRIVE BAYS
-ACCESSIBLE
-HIDDEN

2 x 3.5”, 5 x 2.5”
or 7 x 2.5”

EXPANSION SLOTS

7 (Rotatable Patented Design)

MOTHERBOARDS

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)

I/O PORT

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm

RADIATOR SUPPORT

Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm

CLEARANCE

CPU cooler max height:
155mm (with one TG and one steel side panel)
170mm (with two TG)
VGA max length:
360mm (with radiator)
390mm (without radiator)
PSU max length:
180mm (with HDD Cage)
220mm (without HDD Cage)
