Series

H Series

Model

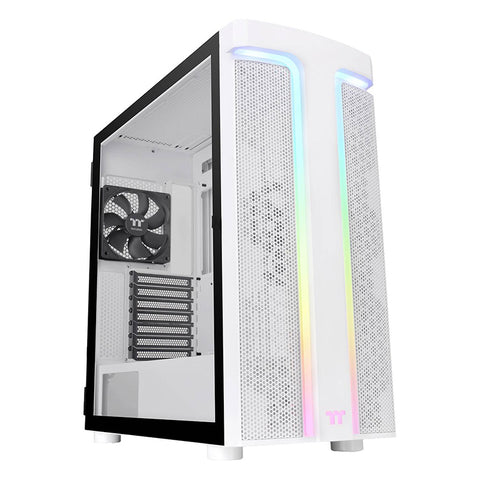

H590 TG ARGB Snow

Case type

Mid Tower

Dimension (H X W X D)

487 x 216 x 467 mm
(19.2 x 8.5 x 18.4 inch)

Net weight

7.45 kg / 16.42 lbs.

Side panel

4mm Tempered Glass x 1

Colour

White

Material

SPCC

Cooling system

Front(intake):
120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1

Drive bays
-Accessible
-Hidden

2 x 3.5”, 2 x 2.5” or 4 x 2.5”

Expansion slots

7

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O port

USB 3.0 x 2, HD Audio x 1, LED button x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
Rear: 1 x 120mm

Radiator support

Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear: 1 x 120mm

Clearance

CPU cooler height limitation: 160mm
VGA length limitation: 360mm
PSU length limitation: 180mm
