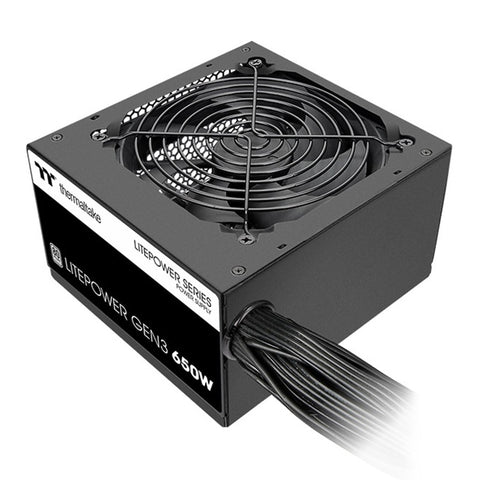

Model

TRS-650AH3NXW

Dimension ( W / H / D )

150mm(W)x86mm(H)x140mm(D)

PFC (Power Factor Correction)

Active PFC

Power good signal

100-150 msec

Hold up time

> 17msec at 80% load

Input current

8A Max.

Input frequency range

50Hz

Input voltage

200-240Vac

Operating temperature

5 °C to + 40 °C

Operating humidity

20% to 85%,non-condensing

Storage temperature

-40 °C to + 55 °C

Storage humidity

10% to 95%, non-condensing

Cooling system

12cm Hydraulic Bearing Fan

Efficiency

80 PLUS ® 230V EU Certified

MTBF

100,000 hrs minimum

Safety approval

FCC/ICES/CB/cTUVus

PCI-E 6+2PIN

2

Protection

OCP/OVP/OPP/OTP/UVP/SCP
