SERIES

The Tower

MODEL

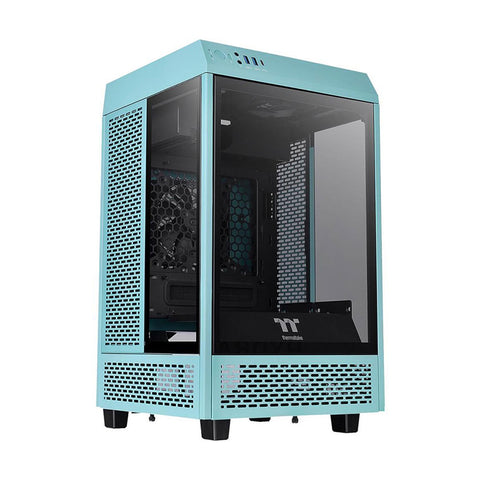

The Tower 100 Turquoise

CASE TYPE

Mini Tower

DIMENSION (H X W X D)

462.8 x 266 x 266 mm
(18.2 x 10.5 x 10.5 inch)

NET WEIGHT

6.1 kg / 13.45 lbs.

SIDE PANEL

Tempered Glass x 3 (4mm thickness)

COLOUR

Turquoise

MATERIAL

SPCC

COOLING SYSTEM

Top(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1

DRIVE BAYS
-ACCESSIBLE
-HIDDEN

-
2 x 2.5“(with side bracket);
2 x 2.5“or 2 x 3.5” (without rear fan)

EXPANSION SLOTS

2

MOTHERBOARDS

6.7” x 6.7” (Mini ITX)

I/O PORT

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Top:
1 x 120mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Top of the PSU Cover:
1 x 120mm, 1 x 140mm

RADIATOR SUPPORT

Top:
1 x 120mm

CLEARANCE

CPU cooler height limitation: 190mm
VGA length limitation: 330mm
PSU length limitation: 180mm
