Series

View

Model

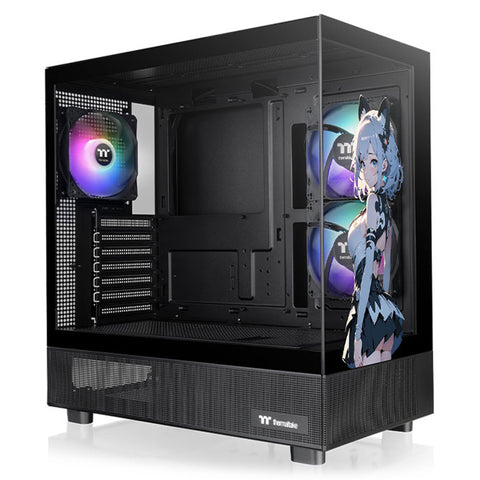

View 270 SP Edition

Case Type

Mid Tower

Dimension (H x W x D)

456 x 230 x 454 mm

(18 x 9.1 x 17.9 inch)

Net Weight

6.35 kg / 14 lbs.

Panel

Tempered Glass x 2

Color

Black

Material

SPCC

Cooling System

Right(intake):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays

-Accessible

-Hidden

2 x 3.5, 1 x 2.5 or 2 x 2.5

Expansion Slots

7

Motherboards

6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),

12 x 9.6 (ATX), 12 x 13 (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side):

2 x 120mm, 1 x 120mm

Rear:

1 x 120mm, 1 x 140mm

Power Cover:

3 x 120mm, 2 x 120mm, 1 x 120mm

Radiator Support

Top: 1 x 360mm, 1 x 240mm, 1 x 120mm

Rear: 1 x 120mm

Clearance

CPU cooler max height: 180mm

VGA max length: 420mm

PSU max length: 220mm
