Series

View

Model

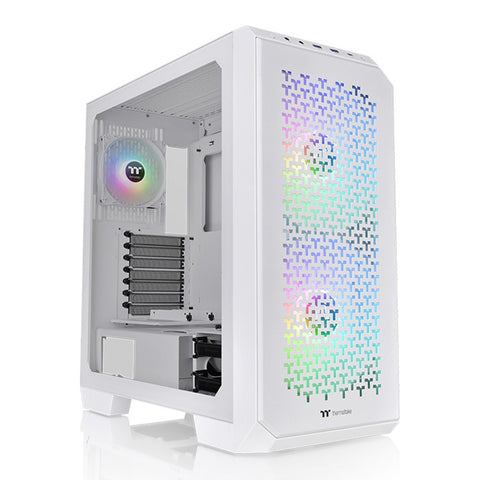

View 300 MX Snow

Case type

Mid Tower

Dimension (H X W X D)

505 x 230 x 506 mm

(19.9 x 9.1 x 19.9 inch)

Net weight

10.4 kg / 22.9 lbs.

Side panel

4mm Tempered Glass x 1

Colour

Black

Material

SPCC + ABS

Cooling system

Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2

Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1

Drive bays

2 x 3.5”, 4 x 2.5” or 6 x 2.5”

Expansion slots

7 (Rotatable Patented Design)

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front: 3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mm

1 x 200mm

Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)

Rear: 1 x 120mm

Radiator support

Front: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)

Rear: 1 x 120mm

Clearance

CPU cooler height limitation: 175mm

VGA length limitation: 280mm(With reservoir)

400mm(Without reservoir)

PSU length limitation: 200mm
