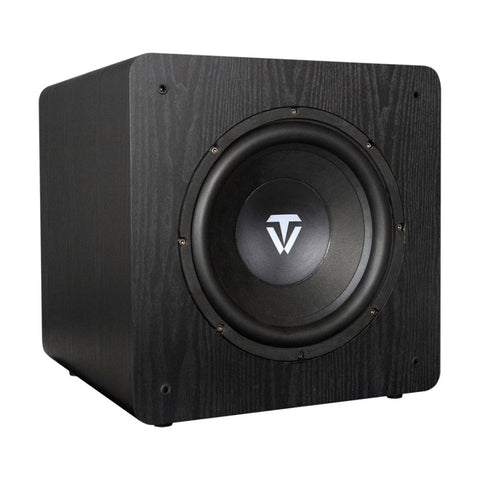

Tonewinner SW-D2000 12 Inch 400W Stereo Subwoofer Black
Tonewinner SW-D2000 400W 12"" Subwoofer

Tonewinner's new SW-D2000 is a 12-inch active subwoofer boasting 400W of driving power, as well as wide dynamic range, low distortion and high amplitude capabilities. The SW-D2000 is constructed with solid materials by Tonewinner's experienced engineers to achieve jaw-dropping low-frequency performance.

Tonewinner has 30+ years of experience designing and manufacturing acoustic products for hi-fi and home theatre use, spanning power amplifiers, speakers, and more. This new versatile subwoofer is the culmination of that experience and can be integrated into any entertainment system with thrilling results.

Key Features:

• 400W RMS / 1500W Peak
• 12"" front-firing driver
• Rear-ported enclosure
• Adjustable 16Hz - 240Hz frequency response
• Line-in (RCA) + LFE (RCA & XLR) inputs
• LFE output for daisy-chaining another subwoofer
• LCD display with touch control buttons
• Bluetooth-controlled DSP digital processing
• EQ adjustment
• Phase switch (0°/180°)
• Auto standby
• Wireless software upgrades

Finesse to Impress

Equipped with a built-in 400-watt RMS amplifier and a robust 12"" driver, the SW-D2000 delivers consistent, punchy bass all the way down to 20Hz and beyond. With its exceptional power and clarity, this subwoofer provides a deep and impactful bass response that adds a new dimension to your movies, music, and games.

However, the SW-D2000 is more than just raw power. It's designed to impress both visually and acoustically, as well as continue to impress even after countless intensive listening sessions. Presented in a sleek black ash finish and a protective mesh grill, the SW-D2000 seamlessly integrates into any home theatre or audio setup, professional or casual. The sturdy MDF cabinet, along with a carefully designed port, optimizes airflow and reduces unwanted resonances, resulting in a clean and distortion-free bass performance.

Precise Control

There's no doubt that the Tonewinner SW-D2000 has plenty of power to offer, but for it to easily integrate into music and home theatre systems, it needs to also offer versatility and convenience. With either the LCD touch controls on the back of the unit, or with built-in Bluetooth connectivity, you can effortlessly control the subwoofer settings using your smartphone through the Tonewinner subwoofer app. Adjust the gain, phase, and listening mode, or apply a personalized parametric equalizer (PEQ) - all from your listening position.

Plays Nicely With Any System

On the rear panel, you'll find a versatile range of connections that allow the SW-D2000 to play nicely with most amplifiers and processors. In addition to the individual Line-In and LFE inputs, which will support a single-ended or Y-split cable from a preamp or integrated stereo/surround amplifier, the subwoofer will also accept a balanced XLR LFE connection, typically found on advanced preamp processors.

In cases where your amp has only a single subwoofer output, but you want to run two subwoofers or more in a single system, you can daisy chain multiple SW-D2000 units together for perfectly synchronised, evenly spread bass in larger rooms.

Tonewinner

Tonewinner was one of the first manufacturers in China to obtain official certifications for advanced HDMI technologies such as Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS:X, DTS Master to name just a few!

The unabashedly Chinese brand is showing that premium components don't need to cost an arm and a leg! Tonewinner aims to bring premium high end audio at prices which won't make your wallet wince. These high end audio components are not only designed for a premium audio experience but also for grunt! Packing not only superior audio and the latest technology, but plenty of 'oomph' too!

The SW-D2000 is a high-performance subwoofer with a 12-inch front-firing driver and 400W built-in amplifier. It delivers powerful bass, even below 20Hz. Control features via Bluetooth such as gain, phase, listening modes, and a personalised parametric equaliser right from your phone.

Channels: 2 Channels
Class: Class AB

Power Output:
- 570W RMS (8 Ohms per channels，1kHz THD=1%)
- 950W RMS (4 Ohms per channels，1kHz，THD=1%)
- 1500 watts (8 Ohms Bridged Mono Mode THD <0.1%)

Inputs: RCA/XLR
Outputs: Speaker terminals

Gain: ≥28.5dB
Frequency Response: 10Hz - 80KHz（+1/-3dB）
THD: ≤0.05%(1KHz, normal working)
Signal to Noise Ratio: >105dB(A weight)
Rated Impedance: 8ohm

Minimum EMF: 2.5V
Power Consumption: ≥1100W
Dimensions W x H x D: 440 x 196 x 440 mm
Weight: 23.7kg

Driver
Front-firing High-Performance 12"" Driver

Frequency Response
16 - 240 Hz

Amplifier
• 400W RMS
• 1500W Peak

Front Grill
Protective Mesh Grill

Colour
Black Ash Finish

Cabinet
MDF

Enclosure
1x Port (rear)

Power Supply
Switchable between 110V (60Hz) and 220V (50Hz)

Inputs
• 1x XLR (LFE)
• 1x RCA (LFE)
• 1x Stereo RCA (Line In)

Outputs
1x RCA Out (LFE)

Dimensions W x H x D
426 x 440 x 472 mm

Net Weight
23kg

Included Accessories
• Protective Mesh Grill
• Power Cord
• Isolation Rubber Feet
• Manual
Includes: 1 x Stereo Subwoofer
