Description
SPECIFICATIONS:
|
Cable Length
|
5m
|
|
Connector type
|
LC-LC
|
|
Fiber mode
|
OS2
|
|
Fiber type
|
Duplex
|
|
Polish
|
UPC to UPC
|
|
Wavelength
|
1310/1550 nm
|
|
Cable jacket material
|
Low smoke zero halogen (LSZH)
|
|
Jacket OD
|
2.0 mm
|
|
Jacket color
|
Yellow
|
|
Insertion loss
|
0.3 dB
|
|
Return loss
|
50 dB
|
|
Repeatability
|
0.1 dB
|
|
Durability
|
0.2 dB (1,000 times mating)
|
|
Ambient operating temperature
|
-40 to 75 ° C (-40 to 167 ° F)
|
Product specifications
- PC case accessory type: Cables & ties
- Contains button battery: No
- Manufacturer's warranty: 12 months
UBIQUITI

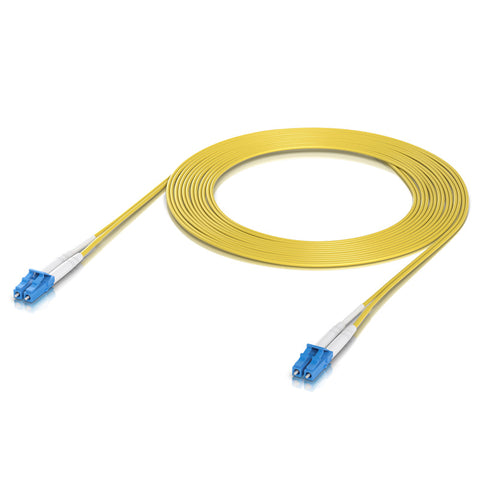

Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable - 5m
Model: UACC-OFC-S2-LULU-5M SKU: 10030204
IT
Key features
- 5m OS2 duplex LC-LC fiber cable with UPC to UPC connectors
- Yellow LSZH jacket, 2.0mm OD, and 1310/1550nm wavelength range
- Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB, repeatability ≤ 0.1 dB
