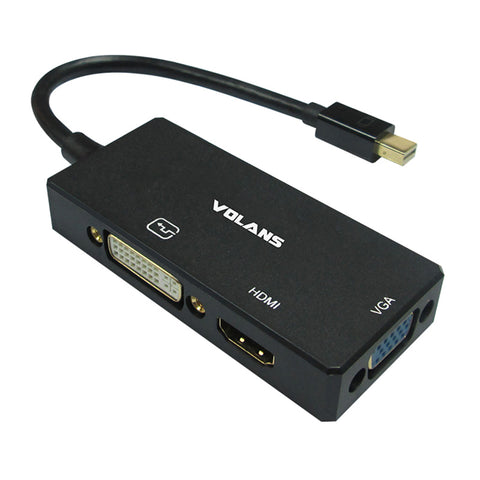

Volans Mini DisplayPort to HDMI (4K) / DVI / VGA Converter
This 3-in-1 travel adapter offers a portable solution for connecting your Mini DisplayPort computer to a VGA, DVI or HDMI ® display. The adapter is VESA certified, to ensure compatibility with your mDP computer.

All-in-one video connectivity, with travel in mind

Instead of filling your laptop bag with different converters for different displays, this 3-in-1 adapter gives you all the video outputs you ll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop s Mini DisplayPort port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type. With support for multiple video outputs and a lightweight, small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

Astonishing picture quality with support for Ultra HD 4K

The HDMI output on this adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolution up to 1920 x 1200, so you can still enjoy excellent video quality. The travel adapter is compatible with mDP Intel ® Thunderbolt ¢ devices that are capable of outputting a DisplayPort signal.

SPECIFICATIONS:

HARDWARE
Adapter Style	Adapters
Audio	Yes
Converter Type	Travel A/V Adapters
Output Signal	HDMI DVI-D (DVI Digital) VGA
PERFORMANCE
Audio Specifications	HDMI output 7.1 surround sound
General Specifications	Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions	1920 x 1200
Maximum Digital Resolutions	3840 x 2160
Supported Resolutions	HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
Video Revision	DisplayPort 1.2
Wide Screen Supported	Yes
CONNECTOR(S)
Connector A	1 Mini-DisplayPort (20 pin) Male Input
Connector B	1 HDMI (19 pin) Female Output 1 VGA (15 pin, High Density D-Sub) Female Output 1 DVI-D (25 pin) Female Output
SPECIAL NOTES / REQUIREMENTS
Note	The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port.
ENVIRONMENTAL
Humidity	40%-50%RH
Operating Temperature	0 °C to 70 °C (32 °F to 158 °F)
Storage Temperature	-10 °C to 80 °C (14 °F to 176 °F)
WHAT S IN THE BOX
Included in Package	1 VL-MDPHDV-4K 2 User Manuel
