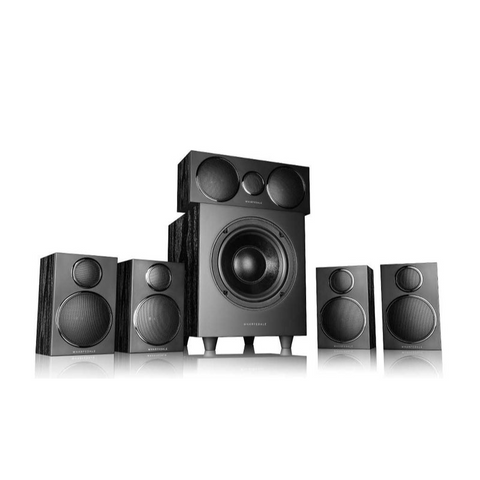

DX-3 includes four satellite 2-way bookshelf speakers, a 2-way centre channel, and one 70W self-powered subwoofer. With small cabinet dimensions, closed-box designs, and critically acclaimed sound quality, DX-3 is the ideal home theatre loudspeaker suite for small-to-medium living/listening spaces.
The latest DX loudspeaker leans more on the award-winning Diamond Series than ever before, inspiring cabinet and driver designs that closely mirror the precise cut and carat of Wharfedale's most successful series to date.
The all-new and powerful 3" (75mm) woven polypropylene mid/bass drivers don't just generate sound; they expertly elicit a range of intense physiological responses like increased heart rates, pupil dilation, and goosebumps, all to draw you deeper and deeper into your favourite film feature.
- Technical Specifications
- Bass Driver: 3" (75mm) woven polypropylene
- Treble Driver: 3/4" (19mm) silk dome
- Sensitivity (2.38V @ 1m): 86dB
- Recommended Amplifier Power: 25-100W
- Frequency Response (+/-3dB): 100Hz - 22kHz
- Bass Extension (-6dB): 100Hz
- Dimensions (H x W x D): 190 x 120 x 122mm
- Net Weight: 2kg/pcs
- Bass Driver: 3" (75mm) woven polypropylene
- Midrange Treble Driver: 3/4" (19mm) silk dome
- Sensitivity (2.83V @ 1m): 87dB
- Recommended Amplifier Power: 30-100W
- Frequency Response (+/-3dB): 80Hz - 22kHz
- Bass Extension (-6dB): 70Hz
- Dimensions (H x W x D): 120 x 310 x 122mm
- Net Weight: 2.7kg
- Bass Driver: 8" (200mm) woven polypropylene cone
- Amplifier Power Output: 70W
- Crossover Range: 40 - 150Hz
- Inputs: Stereo Line In (2 x RCA Phono)
- Input Impedance: Line In 10kΩ
- Features: Low pass filter slope adjustment, Phase inversion, Auto on-off
- Dimensions (H x W x D): 328 x 268 x 322mm
- Net Weight: 7.8kg
SATELLITE SPEAKERS
CENTRE SPEAKER
SUBWOOFER
photos and 3d renders are for illustrative purposes only. please see the specs sheet for the contents of this product.
