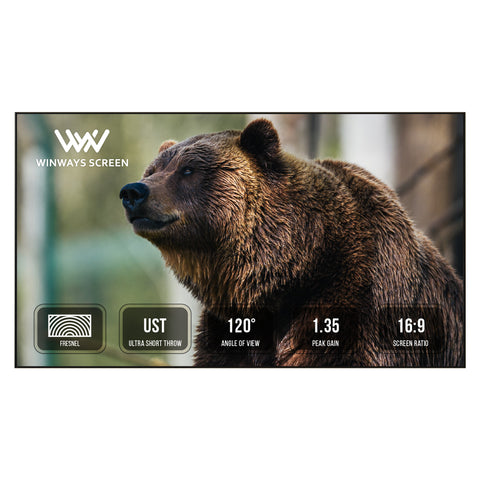

Fscreen Fresnel Optical Hard Screen for Laser TV/ Projector
Key Features:
- Fully adapted to various UST projector
- 110% Ultra-wide color gamut
- Only 0.7mm Ultra-thin optical film but with 8 layers optical structure
- Anti-glare scratch layer
- Color plane
- Diffusion layer
- Columnar lens layer
- Speckle suppression layer
- Fresnel lens layer
- Reflecting layer
- Blackebed layer
- Support UST Projectors which throw ratio between 0.15-0.27, this screen is not suitable for long focal projectors
- Support Projector Installation Method: orthographic projection or ceiling mounted projection
- Screen Installation Supported: Wall-mounted or Bracket fixed
Specification:
- Screen Material: Polymer Resin & Structural Aluminum Plate
- Screen Type: Integrated Hard Screen (Can't fold)
- Screen Color: Dark Grey
- Screen Frame: Metal Black Frame & Bright Silver Border
- Backboard Design: 6 Hooks
- ALR Rate ≥85%
- Peak Gain ≥1.6
- Viewing Angle: 120°±5°
Package Dimension:
| Size | Display Size(mm) | Installation Size(mm) | Packing Box Dimension(mm) | Net Weight(kg) | Gross Weight(kg) |
| 120'' | 2675x1494 | 2680x1517x15 | 2680x1696x75 | 33 | 64 |
| 100'' | 2214x1245 | 2237x1268x15 | 2405x1435x75 | 21 | 45 |
| 90'' | 1993x1122 | 2015x1144x15 | 2185x1315x75 | 18 | 38 |
Warranty:
- Product Warranty: 1 Year
- Not intended or designed for commercial use
Notice: Please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
