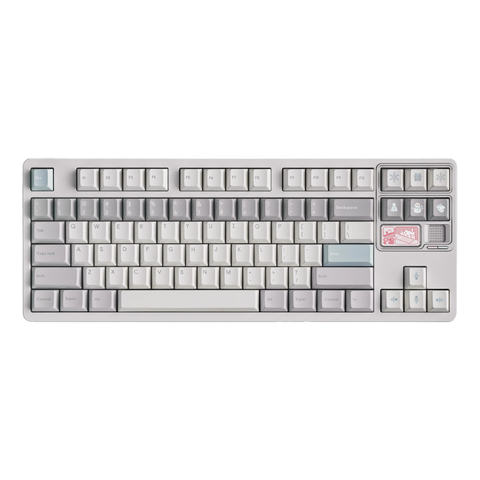

The Qwertykeys QK80 Mk2 Custom Mechanical Keyboard features wireless support, quick-detachable construction, RGB lighting options, ISO layout support and a customisable display. It combines a leaf-spring mounting system with a ball-catch mechanism for convenient assembly and consistent typing feedback.
Key Features
-

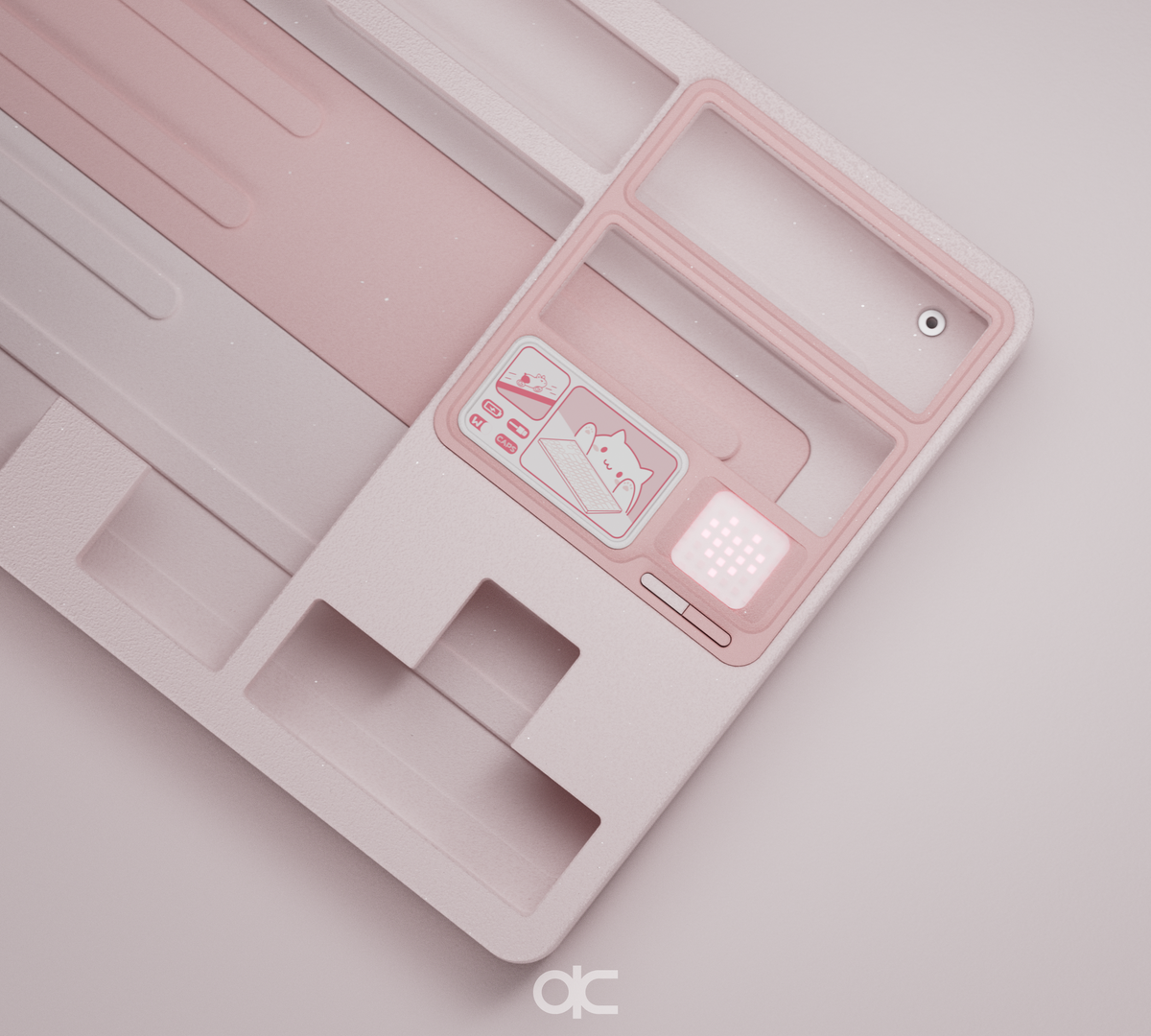

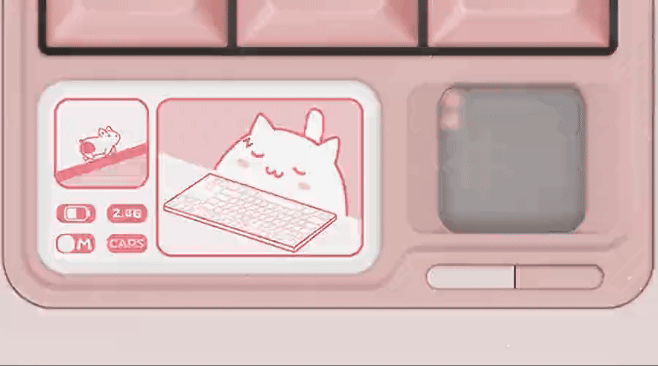

Customisable Display: Features three built-in themes – Dynamic, Code and Meow – with support for customised animations on both the screen and dot-matrix display.
-
Built-In Display Functions: Supports date and time settings, RGB lighting control, sleep settings and a built-in Flappy Bird mini-game.
-
Wireless Support: All PCB options support USB-C, Bluetooth and 2.4GHz connectivity.
-
Leaf-Spring Mount: Designed to provide bouncier typing feedback and enhanced acoustic performance.
-
Ball-Catch Mechanism: Allows quick and convenient keyboard disassembly without traditional case screws.
-
Magnetic Dongle Storage: The rear badge also functions as a magnetic cover for the 2.4GHz USB dongle compartment.
-
ANSI & ISO Support: Compatible with both ANSI and ISO layouts.
-
WK & WKL Compatibility: PCB options work with both WK and WKL cases.
-
Custom VIA Web Configurator: Uses QK's customised VIA web configurator for key mapping and screen customisation.
Specifications
| Typing Angle | 7° |
| Front Height | 19mm |
| Dimensions | 137 x 362mm |
| Weight | Approx. 1.8kg before build / 2.2kg after build |
| Connectivity | USB-C / Bluetooth / 2.4GHz Wireless |
| Layout Compatibility | ANSI / ISO |
| Case Compatibility | WK / WKL |
| Spacebar Support | 6.25u / 7u |
| Battery | 2 x 4000mAh Batteries |
| Configurator | QK Custom VIA Web Configurator |
PCB Options
-
Tri-Mode Flex-Cut Hotswap PCB with Per-Key RGB: 1.2mm thick with per-key RGB.
-
Tri-Mode Flex-Cut Hotswap PCB: 1.2mm thick without per-key RGB.
-
Tri-Mode Non-Flex-Cut Hotswap PCB: 1.6mm thick without per-key RGB.
Package Contents
- Keyboard Case
- Pre-Installed Screen Module and Screen Daughterboard
- 2 x Pre-Installed 4000mAh Batteries
- 4 x Pre-Installed Rubber Feet
- Pre-Installed PCB Daughterboard with Magnetic Connector
- 6 x Pre-Installed Leaf Springs
- PCB of Your Choice
- PET Sheet – Included Only with Per-Key RGB PCB
- IXPE Sheet
- PCB Foam
- Plate of Your Choice
- Case Foam and Anti-Static Film
- 2.4GHz Dongle
- Silicone Gaskets
- Backup Screen Ribbon Cable
- Backup Case Corner Protector
- Backup Screws and Rubber Feet
Included Free Gifts
- Stabilizers
- Keyboard Protective Case
- Switch and Keycap Puller
- Screwdriver
- USB-C Cable
